Filter Stations

We have been developing proven hydraulic control valves for irrigation projects and systems. With the widest range of innovative products for field and greenhouse agriculture, we offer customers advanced control solutions specially created for irrigation – from water source to the emitters: drip, sprinkler, micro-jet and pivot.

Filter Backwash Hydraulic Valve IR-2×2-350-R

The Model IR-2×2-350-R is a compact 3-port valve in a T configuration. It is double chambered, hydraulically operated, and diaphragm actuated. Designed for automatic backwashing of filtration systems, the Model IR-2×2-350-R is available in Angle flow (A) and Straight flow (S) configurations.

PRODUCT FEATURES & BENEFITS:

  • Line Pressure Driven.
  • Double Chambered Design

-Wide application range

-Requires low actuation pressure

-Protected diaphragm

  • Dynamic Sealing

-Seals at very low pressure

-Prevents seal friction and erosion

  • Brass Body

-Rigid construction, high stress resistance

  • Short Valve Travel

-Smooth changes of flow direction

-Eliminates mixing of supply and waste water

  • User- Friendly

-Can be installed in various orientations

-Simple in-line inspection and service

Filter Backwash Hydraulic Valve IR-170-beU

The Filter Backwash Flow Control Valve is a hydraulically operated, diaphragm actuated control valve that limits filter system backwash flow to a constant preset maximum. This eliminates the risk of filtration element collapse or of filter grains being flushed out.



PRODUCT FEATURES & BENEFITS:

  • Line pressure driven Hydraulic Flow Control

-Prevents flushing out of grains or filtration element collapse

  • Servo Flow Pilot Controlled

-Dynamic integrated needle valve

-Very low hysteresis

-Easy flow setting

  • Engineered Plastic Valve with Industrial Grade Design

-Highly durable, chemical and cavitation resistant

-No internal bolts and nuts

  • hYflow ‘Y’ Valve Body with “Look Through” Design

-Ultra-high flow capacity – Low pressure loss

  • Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug

-Accurate and stable regulation with smooth closing

-Requires low actuation pressure

-Prevents diaphragm erosion and distortion

  • Hydraulic Flow Sensor (upstream installation)

-No moving parts

-No need for flow straightening

Filter Backwash Hydraulic Valve IR-470-beKU

The Filter Backwash Flow Control Valve is a hydraulically operated, diaphragm actuated control valve that limits filter system backwash flow to a constant preset maximum. This eliminates the risk of filtration element collapse or of grains being flushed out.

PRODUCT FEATURES & BENEFITS:

Line pressure driven Hydraulic Flow Control

Prevents flushing out of grains or filtration element collapse

Servo Flow Pilot Controlled

Dynamic integrated needle valve

Very low hysteresis

Easy flow setting

Advanced Globe Hydro-Efficient Design

Unobstructed flow path

Single moving part

High flow capacity

Fully Supported & Balanced Diaphragm

Requires low opening and actuation pressure

Excellent low flow regulation performance

Progressively restrains valve closing

Prevents diaphragm distortion

Hydraulic Flow Sensor (upstream installation)

No moving parts

No need for flow straightening

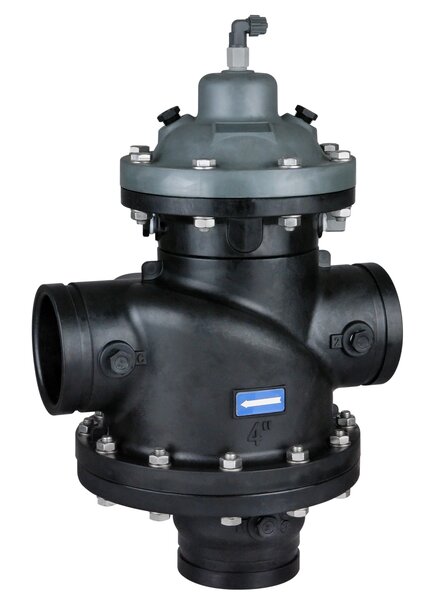

Filter Backwash Hydraulic Valve IR-4×4-350-P

The Model IR-4×4-350-P is a compact 3-port valve, in a ”T” configuration. It is double chambered, hydraulically operated, and diaphragm actuated. Designed for automatic backwashing of filtration systems, the Model IR-4×4-350-P is available in Angle flow (A) and Straight flow (S) configurations.

PRODUCT FEATURES & BENEFITS:

  • Line Pressure Driven.
  • Double Chambered Design

-Quick and smooth mode change

-Wide application range

-Requires low actuation pressure

-Protected diaphragm

  • Dynamic Sealing

-Seals at very low pressure

-Prevents seal friction and erosion

  • Engineered Plastic Valve Design

-Highly durable, chemical and cavitation resistant

  • Long Valve Travel

-Higher flow and lower head loss

-Smooth changes of flow direction

-Eliminates mixing of supply and waste water

  • User- Friendly

-Can be installed in various orientations

-Simple in-line inspection and service

Filter Backwash Hydraulic Valve IR-3×3-350-P

The Model IR-3×3-350-P is a compact 3-port valve, in a T configuration. It is double chambered, hydraulically operated, and diaphragm actuated.

Designed for automatic backwashing of filtration systems, the Model IR-3×3-350-P is available in Angle flow (A) and Straight flow (S) configurations.

PRODUCT FEATURES & BENEFITS:

Line Pressure Driven

Double Chambered DesignWide application range

Requires low actuation pressure

Protected diaphragm

Dynamic SealingSeals at very low pressure

Prevents seal friction and erosion

Engineered Plastic Valve DesignHighly durable, chemical and cavitation resistant

Short Valve TravelSmooth changes of flow direction

Eliminates mixing of supply and waste water

User- FriendlyCan be installed in various orientations

Simple in-line inspection and service

Filter Backwash Hydraulic Valve IR-3×3-350-I

The Model IR-3×3-350-I is a compact 3-port valve, in a T configuration. It is double chambered, hydraulically operated, and diaphragm actuated. Designed for automatic backwashing of filtration systems, the Model IR-3×3-350-I is available in Angle flow (A) and Straight flow (S) configurations.

PRODUCT FEATURES & BENEFITS:

Line Pressure Driven

Double Chambered DesignWide application range

Requires low actuation pressure

Protected diaphragm

Dynamic SealingSeals at very low pressure

Prevents seal friction and erosion

Cast Iron BodyRigid construction, high stress resistance

Short Valve TravelSmooth changes of flow direction

Eliminates mixing of supply and waste water

User- FriendlyCan be installed in various orientations

Simple in-line inspection and service

Filter Backwash Hydraulic Valve IR-2×2-350-P

The Model IR-2×2-350-P is a compact 3-port valve, in a T configuration. It is double chambered, hydraulically operated, and diaphragm actuated. Designed for automatic backwashing of filtration systems, the Model IR-2×2-350-P is available in Angle flow (A) and Straight flow (S) configurations

PRODUCT FEATURES & BENEFITS:

Line Pressure Driven

Double Chambered DesignWide application range

Requires low actuation pressure

Protected diaphragm

Dynamic SealingSeals at very low pressure

Prevents seal friction and erosion

Engineered Plastic Valve DesignHighly durable, chemical and cavitation resistant

Short Valve TravelSmooth changes of flow direction

Eliminates mixing of supply and waste water

User- FriendlyCan be installed in various orientations

Simple in-line inspection and service
