On/Off Control

We have been developing proven hydraulic control valves for irrigation projects and systems. With the widest range of innovative products for field and greenhouse agriculture, we offer customers advanced control solutions specially created for irrigation – from water source to the emitters: drip, sprinkler, micro-jet and pivot.

Solenoid Controlled Valve IR-110-X

The Solenoid Controlled Valve is a hydraulically operated, diaphragm actuated control valve that opens and shuts in response to an electric signal.

PRODUCT FEATURES & BENEFITS:

  • Hydraulic Control Valve with Solenoid Control

-Line pressure driven

-Electrically controlled On/Off

  • Engineered Plastic Valve with Industrial Grade Design

-Adaptable on-site to a wide range of end connection sizes and types

-Articulated flange connections eliminate mechanical and hydraulic stresses

-Highly durable, chemical and cavitation resistant

  • hYflow ‘Y’ Valve Body with “Look Through” Design

-Ultra-high flow capacity – Low pressure loss

  • Unitized “Flexible Super Travel” (FST) Diaphragm and Guided Plug

-Smooth closing

-Requires low actuation pressure

-Prevents diaphragm erosion and distortion

  • User-friendly Design

-Simple in-line inspection and service

Hydraulic Control Valve IR-405-Z

The Hydraulic Control Valve is a hydraulically operated, diaphragm actuated control valve that opens and shuts off in response to a local or remote pressure command.

PRODUCT FEATURES & BENEFITS:

  • Hydraulic Control Valve

-Line pressure driven

-Hydraulically controlled On/Off

  • Advanced Globe Hydro-Efficient Design

-Unobstructed flow path

-Single moving part

-High flow capacity

  • Fully Supported & Balanced Diaphragm

-Requires low opening and actuation pressure

-Progressively restrains valve closing

-Prevents diaphragm distortion

  • User-Friendly Design

-Simple in-line inspection

-Easy addition of control features

Hydraulic Control Valve IR-405-54-RXZ

The Normally Closed, Hydraulic Control Valve with Hydraulic Control is a hydraulically operated, diaphragm actuated control valve, which opens in response to a remote pressure rise command and shuts in the absence of that command.

PRODUCT FEATURES & BENEFITS:

  • Hydraulically Controlled, Normally Closed Valve

-Line pressure driven

-Closes upon control failure

-Amplifies and relays weak remote command

-Hydraulically controlled On/Off

  • Advanced Globe Hydro-Efficient Design

-Unobstructed flow path

-Single moving part

-High flow capacity

  • Fully Supported & Balanced Diaphragm

-Requires low opening and actuation pressure

-Progressively restrains valve closing

-Prevents diaphragm distortion

  • User-Friendly Design

-Simple in-line inspection

-Easy addition of control features



Solenoid Controlled Valve IR-410-X

The Solenoid Controlled Valve is a hydraulically operated, diaphragm actuated control valve that opens and shuts in response to an electric signal

PRODUCT FEATURES & BENEFITS:

  • Hydraulic Control Valve with Solenoid Contro

-Line pressure driven

-Electrically controlled On/Off

-Suitable also for remote and/or elevated systems

  • Advanced Globe Hydro-Efficient Design

-Unobstructed flow path

-Single moving part

-High flow capacity

  • Fully Supported & Balanced Diaphragm

-Requires low actuation pressure

-Progressively restrains Valve closing

-Prevents diaphragm distortion

  • User-Friendly Design

-Simple in-line inspection

-Easy addition of control features

Automatiic Metering Valve (AMV) IR-900-E2

The Automatic Metering Valve for Sequential Irrigation integrates a vertical turbine Woltman-type water meter with a diaphragm actuated hydraulic control valve, equipped with a mechanical sequential shut-off pilot. The IR-900-E2 automatically shuts itself after accurately delivering a preset quantity of water. Working in a group of manually preset AMV’s connected to each other by a control tube and operating in sequence, it enables semi-automatic irrigation in non-computerized systems.

PRODUCT FEATURES & BENEFITS:

  • Integrated “All-in-One” Control Valve

-Saves space, cost and maintenance

  • Easy Modification to Mechanical Drive Hydrometer

-Adaptable to future computerized systems

  • Hydraulic Batch & Sequence Control

-Line pressure driven

-Hydraulic irrigation shift sequencing

-Non-computerized quantity follow-up and control

  • Internal Inlet & Outlet Flow Straighteners

-Saves on straightening distances

-Maintains accuracy

  • Integrated Flow Metering Calibration Device

-Measurement precision to ±2%

  • User-Friendly Design

-Easy dose setting

-Simple in-line inspection and service

Automatic Metering Valve (AMV) IR-900-D2

The Automatic Metering Valve integrates a vertical turbine Woltman-type water meter with a diaphragm actuated hydraulic control valve. Equipped with a Mechanical Shut-Off Pilot, the IR-900-D2 enables volumetric irrigation in non-computerized systems. It automatically shuts itself after accurately delivering a manually preset quantity of water.

PRODUCT FEATURES & BENEFITS:

  • Integrated “All-in-One” Control Valve

-Saving space, cost and maintenance

  • Easy Modification to Mechanical Drive Hydrometer

-Adaptable to future computerized systems

  • Hydraulic Batch Control

-Line pressure driven

-Non-computerized quantity follow-up and control

  • Internal Inflow & Outflow Straighteners

-Saves on straightening distances

-Preserves accuracy when installed vertically

  • Flow Metering Calibrator

-Measurement precision to ±2%

  • User-Friendly Design

-Easy dose setting

-Simple in-line inspection and service

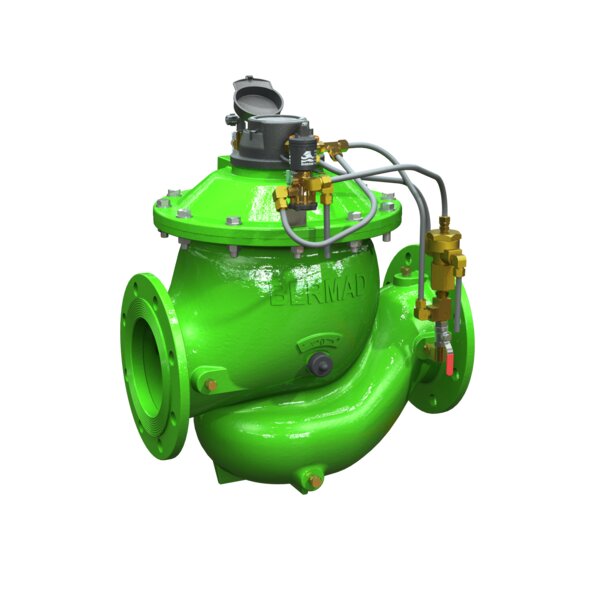

Hydrometer 910-M0-RX

The Hydrometer with Solenoid Controll integrates a vertical turbine Woltman-type water meter with a diaphragm actuated hydraulic control valve. The impeller drive is magnetically coupled to a vacuum-sealed meter register in the control head. As the system’s Flow Meter and Main Valve, it controls system irrigation together with the irrigation controller. The Model IR-910-M0-RX opens and shuts in response to an electric signal.

PRODUCT FEATURES & BENEFITS:

  • Integrated “All-in-One” Control Valve

-Saving space, cost and maintenance

  • Easy Modification to Mechanical Drive Hydrometer

-Adaptable to future computerized systems

  • Hydraulic Batch Control

-Line pressure driven

-Non-computerized quantity follow-up and control

  • Internal Inflow & Outflow Straighteners

-Saves on straightening distances

-Preserves accuracy when installed vertically

  • Flow Metering Calibrator

-Measurement precision to ±2%

  • User-Friendly Design

-Easy dose setting

-Simple in-line inspection and service

Hydrometer IR-900-M0-Z

The Hydrometer with Magnetic Drive integrates a vertical turbine Woltman-type water meter with a diaphragm actuated hydraulic control valve. The impeller drive is magnetically coupled to a vacuum-sealed meter register in the control head. As the system’s Flow Meter and Main Valve, it controls system irrigation together with the irrigation controller. The Model IR-900-M0-Z opens or shuts in response to remote pressure commands while continuously and accurately transmitting flow data.



PRODUCT FEATURES & BENEFITS:

  • Integrated “All-in-One” Control Valve

-Saves space, cost and maintenance

  • Hydraulically Controlled Hydrometer

-Line pressure driven

  • Magnetic Drive with Vacuum-Sealed Register

-Water-free gear train mechanism

-Reed-switch and Opto pulse-generating modes

-Varios pulse combinations

  • Internal Inlet & Outlet Flow Straighteners

-Saves on straightening distances

-Maintains accuracy

  • Integrated Flow Metering Calibration Device

-Precise measurement

  • User-Friendly Design

-Simple in-line inspection and service

Hydrometer 900-M0-54-RXZ

The Model IR-900-M0-54-RXZ integrates a vertical turbine Woltman-type water meter with a diaphragm actuated hydraulic control valve. As the system’s Flow Meter and Main Valve, it controls system irrigation together with the irrigation controller. It is a Normally Closed Hydrometer, which opens in response to a pressure command and shuts in the absence of that command.

PRODUCT FEATURES & BENEFITS:

  • Integrated “All-in-One” Control Valve

-Saves space, cost and maintenance

  • Hydraulically Controlled Hydrometer

-Line pressure driven

  • Magnetic Drive with Vacuum-Sealed Register

-Water-free gear train mechanism

-Reed-switch and Opto pulse-generating modes

-Varios pulse combinations

  • Internal Inlet & Outlet Flow Straighteners

-Saves on straightening distances

-Maintains accuracy

  • Integrated Flow Metering Calibration Device

-Precise measurement

  • User-Friendly Design

-Simple in-line inspection and service

Solenoid Controlled Valve IR-410-KX

The Solenoid Controlled Valve is a hydraulically operated, diaphragm actuated control valve that opens and shuts in response to an electric signal.

PRODUCT FEATURES & BENEFITS:

  • Hydraulic Control Valve with Solenoid Control

-Line pressure driven

-Electrically controlled On/Off

-Suitable also for remote and/or elevated systems

  • Advanced Globe Hydro-Efficient Design

-Unobstructed flow path

-Single moving part

-High flow capacity

  • Fully Supported & Balanced Diaphragm

-Requires low opening and actuation pressure

-Progressively restrains valve closing

-Prevents diaphragm distortion

  • User-Friendly Design

-Simple in-line inspection

-Easy addition of control features

Hydraulic Control Valve IR-405-54-KX

The Normally Closed Control Valve with Hydraulic Control is a hydraulically operated, diaphragm actuated control valve. The Model IR-405-54-KX is a Normally Closed valve, which opens in response to a pressure rise command and shuts in the absence of that command.

PRODUCT FEATURES & BENEFITS:

  • Hydraulically Controlled, Normally Closed Valve

-Line pressure driven

-Closes upon control failure

-Amplifies and relays weak remote command

-Hydraulically controlled On/Off

  • Advanced Globe Hydro-Efficient Design

-Unobstructed flow path

-Single moving part

-High flow capacity

  • Fully Supported & Balanced Diaphragm

-Requires low opening and actuation pressure

-Progressively restrains valve closing

-Prevents diaphragm distortion

  • User-Friendly Design

-Simple in-line inspection

-Easy addition of control features
